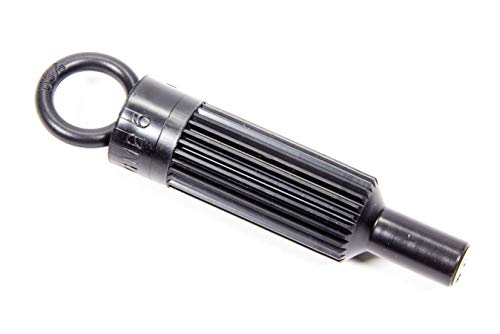

The 26 spline clutch alignment tool ensures precise clutch installation. It fits various vehicles with 26 spline clutch discs.
This tool helps align the clutch disc with the pressure plate and flywheel. Proper alignment prevents clutch slippage and wear. Many brands offer steel tools designed for durability and accuracy. These tools fit popular transmissions like T56, TR-6060, and T5.
They work with Ford and GM applications, making them versatile for many car models. Using a 26 spline clutch alignment tool saves time and effort during clutch replacement. Mechanics and car enthusiasts rely on these tools for smooth, trouble-free clutch installations. Choosing the right alignment tool improves vehicle performance and clutch life.
Centerforce Alignment Tool
The Centerforce 53026 Alignment Tool is ideal for automotive enthusiasts and professional mechanics who require precise clutch alignment during installation. If you’re someone who values accuracy and efficiency in your vehicle maintenance or repair tasks, this tool is designed to simplify your workflow and ensure optimal performance.
Pros:
- Provides precise clutch alignment for easier installation
- Compact and lightweight design for convenient handling
- Durable construction ensures long-lasting use
- Compatible with a wide range of vehicles
- Enhances the lifespan of clutch components by ensuring proper fitment
Cons:
- Limited to clutch alignment tasks only
- Dimensions not specified, which may cause uncertainty for some users
The Centerforce 53026 Alignment Tool features a robust build with a sleek black finish, reflecting the quality standards set by Centerforce. Its lightweight design, weighing just 0.132 pounds, allows for easy maneuverability and reduces user fatigue during extended use. Despite its compact size, the tool delivers exceptional precision, which is critical for aligning clutch components accurately.
Using this tool ensures that the clutch disc is perfectly centered, which can prevent common installation issues such as misalignment and uneven wear. This precision leads to smoother clutch engagement and disengagement, enhancing overall driving experience and vehicle performance. Additionally, the tool’s compatibility with various vehicle models makes it a versatile addition to any mechanic’s toolkit.
Ram Clutches Steel Alignment Tool
The Ram Clutches 03-013 Steel Alignment Tool is ideal for automotive professionals and DIY enthusiasts who require precise clutch alignment during installation. This tool is perfect for those looking to ensure a smooth and efficient clutch setup, minimizing the risk of misalignment and potential damage to transmission components. If you frequently work on vehicle clutches or are seeking a reliable alignment tool, this product is designed to meet your needs.
Pros:
- Made from durable steel ensuring long-lasting use
- Compact dimensions (6.0 x 8.0 x 6.0 inches) make it easy to handle and store
- Lightweight design (0.2 pounds) enhances portability
- Precision alignment helps reduce clutch installation errors
- Compatible with a variety of clutch systems
Cons:
- Limited to clutch alignment tasks only
- May require some experience to use effectively
The Ram Clutches 03-013 Steel Alignment Tool boasts a sturdy steel construction that guarantees durability and resistance to wear over time. Its compact size and light weight make it convenient to carry around in a toolbox or workshop, enhancing user mobility without compromising on strength. This tool is engineered to provide precise alignment of clutch discs, which is essential for achieving optimal clutch performance and longevity.
By using this alignment tool, users benefit from faster and more accurate clutch installations, reducing the likelihood of transmission issues caused by misalignment. The tool’s design accommodates various clutch types, making it a versatile addition to any mechanic’s toolkit. Overall, the Ram Clutches alignment tool helps improve repair quality while saving time and effort during clutch maintenance.

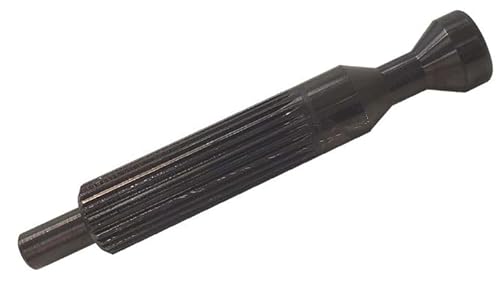

Steel Clutch Alignment Tool
The Steel 26 Spline Clutch Alignment Tool is ideal for professional mechanics and automotive enthusiasts who require precise and reliable clutch installation. If you frequently work on manual transmissions or need a durable tool that ensures proper clutch alignment, this tool is designed to meet your needs. It is perfect for those looking to improve the efficiency and accuracy of their clutch replacement or repair jobs.
Pros:
- Made from high-quality steel for enhanced durability and longevity
- Specifically designed with 26 spline compatibility to ensure perfect clutch alignment
- Compact and lightweight, weighing only 1.0 pounds, making it easy to handle and store
- Manufactured by Keyser Manufacturing, a trusted brand known for quality automotive tools
Cons:
- Limited to vehicles that require a 26 spline clutch alignment, not suitable for other spline counts
- May not be compatible with some specialized or non-standard clutch systems
The Steel 26 Spline Clutch Alignment Tool features a robust steel construction that guarantees strength and resistance to wear, even under frequent use. Its precise 26 spline design ensures that the clutch disc is perfectly centered during installation, reducing the risk of damage to the clutch components and transmission input shaft. This precision leads to smoother gear shifts and extends the lifespan of your clutch system.
Additionally, the tool’s lightweight and ergonomic design allow for easy maneuverability in tight engine compartments, making the installation process quicker and less frustrating. By using this alignment tool, users can significantly reduce the chances of clutch misalignment, which often causes premature wear and costly repairs. Overall, it is a practical and efficient tool that enhances both the quality and ease of clutch replacement projects.
Clutch Alignment Tool
The Clutch Alignment Tool, 1-1/8 Inch 26-Spline is ideal for automotive enthusiasts, professional mechanics, and DIYers who need precise alignment of clutch discs during installation. If you’re working on manual transmission vehicles and want to ensure smooth clutch engagement and avoid costly misalignment issues, this tool is perfect for you.
Pros:
- Made by trusted Speedway Motors brand ensuring quality and durability
- Exact 1-1/8 Inch 26-Spline size fits specific clutch setups accurately
- Compact dimensions (1.0 x 1.0 x 6.0 Inches) make it easy to handle and store
- Lightweight design at just 1.0 pounds for comfortable use during installation
- Helps achieve perfect clutch disc alignment, reducing installation errors
Cons:
- Limited to specific spline size, not universal for all clutch systems
- May require prior knowledge or experience to use effectively
- Not suitable for automatic transmissions or non-spline clutch types
The Clutch Alignment Tool by Speedway Motors features precision engineering tailored to the 1-1/8 inch 26-spline clutch discs, ensuring a snug fit that aligns the clutch components perfectly. Its ergonomic length of 6.0 inches allows users to easily maneuver the tool into tight spaces, which is essential during clutch installation or replacement. The sturdy construction guarantees durability and long-term use, making it a reliable addition to any mechanic’s toolkit.
Using this tool significantly reduces the risk of clutch misalignment, which can lead to uneven wear, difficulty in gear shifting, or premature clutch failure. By providing an exact fit, it simplifies the installation process, saving time and effort. Whether you are rebuilding a transmission or performing routine maintenance, this clutch alignment tool ensures smoother, more efficient vehicle operation and enhances overall drivetrain performance.
269 Motorsports Steel 26 Spline Clutch Alignment Tool
The 269 Motorsports Steel 26 Spline Clutch Alignment Tool is ideal for automotive enthusiasts and professional mechanics working with T56 & TR-6060 transmissions, especially those upgrading or maintaining LT1, LS1, LS2, LS3, LS7, LS, and LSX engines. This tool is perfect for anyone seeking precision and ease when aligning clutch components during installation or repair.
Pros:
- Made from durable steel for long-lasting use
- Specifically designed for 26 spline clutch alignment
- Compatible with multiple transmission models including T56 & TR-6060
- Works with a wide range of LS engine variants (LT1, LS1, LS2, LS3, LS7, LS, LSX)
- Ensures precise clutch alignment, reducing installation errors
Cons:
- Limited to 26 spline clutches, not universal for all spline sizes
- May require prior mechanical knowledge for effective use
The 269 Motorsports Steel 26 Spline Clutch Alignment Tool is engineered to provide exact clutch alignment, which is critical for smooth transmission operation and longevity. Its robust steel construction guarantees durability, making it a reliable addition to any mechanic’s toolkit. By matching the specific spline count and transmission types, it ensures compatibility and efficiency during clutch installation.
This tool enhances the installation process by minimizing the risk of clutch misalignment, which can lead to premature wear or transmission issues. Its compatibility with various high-performance LS engine models means it supports a broad range of custom builds and repairs, offering versatility to users. Overall, this alignment tool simplifies clutch work, saving time while improving the quality of the job.
26 Spline Steel Clutch Alignment Line Up Shaft
The 26 Spline Steel Clutch Alignment Line Up Shaft is ideal for automotive enthusiasts and mechanics who frequently work on Ford applications. Whether you are performing clutch replacements or upgrades, this tool ensures precise alignment, making it a must-have for anyone seeking efficiency and accuracy in their vehicle maintenance.
Pros:
- Made from durable steel for long-lasting use
- Compatible with a variety of Ford models
- Compact dimensions (2.0 Inches Height, 2.0 Inches Width, 8.0 Inches Length) for easy handling
- Lightweight at 2.0 pounds, reducing user fatigue during use
- Generic brand with reliable manufacturing by AMP
Cons:
- May not fit non-Ford vehicle applications
- Generic branding might concern buyers looking for OEM parts
This clutch alignment shaft features a precise 26 spline design, ensuring a snug fit into the clutch disc and flywheel. This accuracy simplifies the alignment process during clutch installation, preventing misalignment issues that can lead to premature wear or installation difficulties. The steel construction guarantees durability and resistance to bending or breaking under pressure, enhancing reliability during repeated use.
Additionally, its compact and lightweight form factor allows for easy maneuverability in tight engine compartments, making it user-friendly for both professional mechanics and DIY enthusiasts. By streamlining the clutch alignment process, this tool not only saves time but also improves the overall quality of clutch replacements, contributing to better vehicle performance and longevity.
26 Spline Clutch Disc Alignment Line Up Shaft
The 26 Spline Clutch Disc Alignment Line Up Shaft is ideal for automotive enthusiasts and mechanics working specifically on GM applications. If you are looking for a reliable and precise tool to assist in clutch installation and alignment, this item is designed to simplify your workflow and ensure accurate results.
Pros:
- Durable construction from trusted AMP manufacturer
- Compact dimensions (2.0 Inches Height, 2.0 Inches Width, 8.0 Inches Length) for easy handling and storage
- Lightweight at 2.0 pounds, reducing fatigue during use
- Specifically designed for 26 spline clutch discs, ensuring perfect fitment
- Generic brand offering affordability without compromising quality
Cons:
- Limited to GM vehicle applications, not compatible with other brands
- May require prior mechanical knowledge for effective use
This clutch disc alignment tool features a robust design that aligns the clutch disc perfectly with the flywheel and pressure plate, preventing misalignment issues that can cause premature wear or failure. Its precise dimensions facilitate smooth installation, making it invaluable for both professional mechanics and DIY automotive repair enthusiasts.
Additionally, the tool’s lightweight yet sturdy construction ensures it can withstand repeated use without bending or breaking, enhancing its durability. By providing an easy and effective way to line up clutch discs, it helps users save time and reduce frustration during vehicle maintenance or upgrades.
Clutchxperts Cxp Clutch Alignment Tool Kit
The ClutchXperts CXP Clutch Alignment Tool KIT is ideal for automotive enthusiasts and professional mechanics who work on 86-01 Ford Mustang models equipped with T5, TREMEC TKO, and TKP 26 Spline transmissions. If you are looking for a precise and reliable tool to ensure perfect clutch alignment during installation or repair, this kit is designed to make your job easier and more efficient.
Pros:
- Specifically compatible with 86-01 Ford Mustang T5 and TREMEC transmissions
- Made by trusted brand ClutchXperts ensuring high quality and durability
- Facilitates accurate clutch alignment for smooth transmission operation
- Simple to use, reducing installation time and potential errors
- Compact and lightweight design for easy handling and storage
Cons:
- Limited compatibility; not suitable for vehicles outside specified models and transmissions
- Does not include additional tools required for full clutch replacement
The ClutchXperts CXP Clutch Alignment Tool KIT features precision engineering tailored for the specific spline counts of popular Mustang transmissions, which ensures that the clutch disc is perfectly centered. This alignment is crucial for proper clutch engagement, preventing premature wear and transmission issues. The regular color design keeps it simple and functional without unnecessary frills.
By using this alignment tool, users benefit from an easier installation process, reducing frustration and potential mistakes. The kit’s compatibility with multiple transmission types like T5 and TREMEC TKO expands its usefulness for Mustang enthusiasts who may work on different models. Overall, it is a practical investment for maintaining or upgrading your vehicle’s clutch system efficiently.
Dorman Clutch Alignment Tool
The Dorman 14505 Clutch Alignment Tool is ideal for automotive enthusiasts and professional mechanics who need a reliable and precise tool for clutch installation on select vehicle models. If you are looking to simplify the process of aligning your clutch during replacement or repair, this tool is designed to provide an efficient and accurate solution.
Pros:
- Precision alignment ensures smooth clutch installation
- Compatible with select vehicle models for versatility
- Compact and lightweight design (8.2 inches length, 0.07 pounds) for easy handling
- Durable black finish for long-lasting use
- Manufactured by trusted brand Dorman Products
Cons:
- Limited compatibility with only select models
- May require additional tools for complete clutch installation
The Dorman 14505 Clutch Alignment Tool features a streamlined design with dimensions of 1.1 inches in height, 1.8 inches in width, and 8.2 inches in length, making it both compact and easy to handle during clutch alignment tasks. Its lightweight construction minimizes user fatigue, allowing for greater control and precision when positioning the clutch disk. The tool’s black finish not only enhances durability but also offers resistance against wear and corrosion, ensuring it remains a reliable part of your automotive toolkit.
This tool’s compatibility with select vehicle models ensures that users have a specialized solution tailored to their specific clutch replacement needs. By providing accurate alignment, it reduces the risk of misalignment-related issues, such as uneven wear or clutch slippage, ultimately extending the lifespan of the clutch components. The Dorman 14505 is perfect for anyone seeking to improve their clutch installation process with a dependable and efficient alignment tool.
Orion Motor Tech Clutch Alignment Tool Kit
The Orion Motor Tech Clutch Alignment Tool Kit is ideal for mechanics, automotive enthusiasts, and DIYers who frequently work on vehicle clutch systems. Whether you’re repairing or replacing the clutch on a car, light truck, or SUV, this universal set ensures precise alignment, making it a must-have for anyone seeking reliability and efficiency in clutch installation.
Pros:
- Includes 11 pieces with 3 spindles to fit a wide range of clutch sizes.
- Constructed from heavy-duty metric materials for durability and long-lasting use.
- Universal compatibility suitable for cars, light trucks, and SUVs.
- Blue color makes tools easy to identify in a busy workspace.
- Helps ensure precise clutch disc alignment for smooth installation and operation.
Cons:
- May require some experience to use effectively for beginners.
- Limited to clutch alignment tasks and not suitable for other repairs.
The Orion Motor Tech Clutch Alignment Tool Kit stands out due to its comprehensive range of spindle sizes, which accommodate various clutch discs. This versatility eliminates the need to purchase multiple tools for different vehicles, saving both time and money. The heavy-duty metric construction ensures that the tools withstand rigorous use without bending or breaking, providing users with confidence during clutch installation.
Additionally, the tool kit’s design focuses on ease of use, allowing users to center the clutch disc accurately, which is essential for preventing misalignment-related issues such as premature wear or difficulty in shifting gears. The bright blue finish not only adds aesthetic appeal but also improves visibility in a cluttered garage or toolbox, reducing the chance of misplacing parts. Overall, this kit enhances the efficiency and precision of clutch maintenance tasks, making it a valuable addition to any automotive toolkit.
Frequently Asked Questions
What Is A 26 Spline Clutch Alignment Tool Used For?
A 26 spline clutch alignment tool centers the clutch disc during installation. It ensures proper alignment with the transmission input shaft. This prevents damage and facilitates smoother clutch engagement. It’s essential for vehicles with 26 spline clutch discs, improving installation accuracy and overall clutch performance.
Which Vehicles Are Compatible With 26 Spline Clutch Alignment Tools?
26 spline clutch alignment tools fit many Ford and GM models. They work with transmissions like T5, T56, and Tremec TKO. Popular engines include LT1, LS1, LS2, LS3, and LS7. Always check your vehicle’s clutch spline count and compatibility before purchasing the tool.
How Do I Choose The Right 26 Spline Clutch Alignment Tool?
Select a tool matching your clutch disc spline count and diameter. Look for heavy-duty steel construction for durability. Consider compatibility with your transmission model, such as T56 or Tremec. Kits with multiple spindle sizes offer versatility for various vehicles and clutch types.
Can I Use A 26 Spline Tool For Other Spline Counts?
No, 26 spline clutch tools only fit clutch discs with 26 splines. Using the wrong spline count can cause misalignment and clutch damage. Always verify the spline count on your clutch disc before selecting the alignment tool to ensure proper fit and function.
Are Universal Clutch Alignment Kits Better Than Single Spline Tools?
Universal kits offer multiple spindle sizes for different spline counts. They provide flexibility if you work on various vehicles. However, single spline tools like the 26 spline are more precise for specific clutch types. Choose based on your needs and frequency of clutch installations.
Conclusion
A 26 spline clutch alignment tool makes clutch installation easier and more precise. It helps center the clutch disc perfectly on the flywheel. This reduces the risk of damage and saves time during repairs. Many tools are designed for specific car models like Ford and GM, ensuring a good fit.
Steel tools offer durability and long-lasting use. Having the right tool means less guesswork and smoother assembly. Whether you choose a single tool or a kit with multiple sizes, alignment becomes simpler. This small tool plays a big role in clutch maintenance and replacement.
Using it correctly can prevent costly mistakes and improve vehicle performance. Choosing the right 26 spline clutch alignment tool is smart for both beginners and experienced mechanics. It is a small investment that leads to better results and less frustration.
