A CNC router automatic tool changer boosts efficiency by switching tools quickly during machining. It saves time and reduces manual work in cutting, engraving, and milling.
This system uses sensors and tool holders to swap bits automatically. Common parts include tool setters, spindle motors, and clamps that fit various CNC routers. For example, water-cooled spindles with speeds up to 24,000 rpm provide smooth cutting. Tool sensors help detect tool position with high accuracy.
Controllers manage the movement of the tool changer, ensuring precise swaps. These components work together to keep production steady and reduce errors. Automatic tool changers suit woodworking, metal cutting, and engraving tasks. They make CNC machines more versatile and productive while lowering labor needs. Many kits and parts are available to upgrade existing CNC routers easily.
Rattmmotor Normally Open Mach3 Cnc Automatic Tool Sensor Gauge Changer
The RATTMMOTOR Normally Open Mach3 CNC Automatic Tool Sensor Gauge Changer is ideal for professionals and hobbyists who operate CNC routers or engraver machines. If you need precise and reliable tool measurement and setting to enhance your machining accuracy and efficiency, this CNC Z Axis Probe Tool Touch Sensor Setter is a perfect fit. It is especially useful for those looking to automate tool change processes and minimize manual errors in their CNC operations.
Pros:
- High compatibility with Mach3 CNC systems ensures seamless integration.
- Automatic tool sensing improves precision and reduces setup time.
- Compact and lightweight design (dimensions: 4.33 x 2.75 x 5.91 inches; weight: 0.99 pounds) allows easy installation.
- Normally open 4-wire configuration supports stable and consistent signal transmission.
- Enhances tool change automation leading to increased productivity on CNC machines.
Cons:
- May require some technical knowledge for initial setup and calibration.
- Limited to CNC machines compatible with Mach3 software and 4-wire sensors.
- Not ideal for users with very basic or manual CNC setups.
The RATTMMOTOR Tool Sensor Gauge Changer offers a reliable solution for precise tool measurement on CNC routers and engravers. Its normally open design with 4 wires ensures accurate and timely detection of tool position, which is crucial for automated tool changing and setting. By integrating this sensor, users can significantly reduce human error, streamline their workflow, and achieve better machining results.
Additionally, the sensor’s compact size and lightweight build make it easy to incorporate into existing CNC setups without adding bulk or complexity. Designed by RTM, this tool setter is built to withstand regular use while maintaining high levels of accuracy, making it a valuable accessory for anyone serious about improving CNC machining efficiency.
1.8kw Iso20 Atc Water Cooled Spindle Motor Automatic Tool Changer
The 1.8KW ISO20 ATC Water Cooled Spindle Motor Automatic Tool Changer is ideal for professional CNC machinists and hobbyists who require high precision and efficiency in their milling, engraving, or routing projects. This kit is perfect for those working in manufacturing, woodworking, or metalworking who need a reliable spindle motor combined with a powerful VFD inverter for smooth operation and automated tool changes.
Pros:
- High-speed operation up to 24000rpm for fast and precise machining
- Automatic Tool Changer (ATC) capability increases productivity and reduces downtime
- Water-cooled design ensures better heat dissipation for prolonged spindle life
- Includes a 2.2KW 220V VFD inverter converter for stable and efficient motor control
- Compact ISO20 spindle interface compatible with a wide range of CNC machines
- Manufactured by trusted brand CNCTOPBAOS and Changzhou Rattm Motor Co., Ltd
Cons:
- Requires proper installation and setup knowledge for optimal performance
- Water cooling system needs regular maintenance to prevent leaks or clogs
- Higher initial investment compared to air-cooled spindle systems
The 1.8KW ATC spindle motor offers exceptional speed and precision, making it a versatile choice for various CNC applications. Its automatic tool changer functionality significantly reduces manual intervention, allowing for seamless tool swaps during complex machining processes. This enhances workflow efficiency, especially in production environments where time is critical. Additionally, the water-cooled mechanism maintains a consistent operating temperature, protecting the motor from overheating and extending its overall lifespan.
Paired with the included 2.2KW 220V VFD inverter converter, users benefit from enhanced motor control, enabling smooth acceleration and deceleration while minimizing power consumption. This combination ensures stable performance even during heavy-duty milling or engraving tasks. The compact ISO20 spindle interface also facilitates easy integration with existing CNC router and milling machines, making it a practical upgrade for professionals seeking to boost both speed and reliability in their machining operations.
3kw Bt30 Atc Water Cooled Spindle Motor
The 3KW BT30 220V ATC Water Cooled Spindle Motor is ideal for professionals and hobbyists who require high precision and efficiency in their CNC router, milling, and engraving machines. This spindle motor is perfect for those involved in woodworking, metalworking, or any detailed engraving tasks looking for a reliable and powerful tool changer spindle with excellent cooling capabilities.
Pros:
- High power output of 3KW ensures efficient material cutting and engraving.
- Automatic Tool Changer (ATC) enhances productivity by reducing manual tool changes.
- Water cooled system maintains optimal operating temperature, extending spindle life.
- Operates at a high speed of 24000rpm with 400Hz frequency for smooth and precise machining.
- Compact and sturdy design with a weight of approximately 46.3 pounds for stability during operation.
Cons:
- Requires a reliable water cooling setup, which may add to initial installation complexity.
- Higher voltage requirement at 220V may not be compatible with all workshop power supplies.
The 3KW BT30 spindle motor from CNCTOPBAOS is designed with precision and durability in mind. Its automatic tool changer feature significantly reduces downtime by allowing seamless switching between tools, which is essential for complex projects requiring multiple operations. The water cooling system ensures that the spindle maintains a consistent temperature, preventing overheating and allowing for longer continuous use without compromising performance.
Additionally, the spindle’s high speed capability of 24000rpm combined with the 400Hz frequency offers smooth and accurate cutting, engraving, and milling results. The robust build and reliable manufacturing by Changzhou Rattm Motor Co., Ltd. ensure that users get a long-lasting and efficient spindle motor suitable for various CNC applications. Overall, this spindle motor is a valuable investment for anyone looking to enhance the precision and productivity of their CNC machinery.
Cnc Automatic Tool Sensor Gauge
The CNC Automatic Tool Sensor Gauge is perfect for professionals and hobbyists who operate CNC routers and require precise tool measurement to improve machining accuracy. Ideal for users looking to minimize setup time and enhance tool life, this device is especially beneficial for those working in metalworking, woodworking, or manufacturing environments where precision is paramount.
Pros:
- High accuracy tool setting for improved machining quality
- Compatible with DC 24V CNC routers ensuring wide usability
- Normally Closed design reduces false triggers and increases reliability
- Easy installation and integration with existing CNC systems
- Manufactured by Mefape, known for quality CNC accessories
Cons:
- Requires familiarity with CNC tool setting procedures for optimal use
- Limited to CNC routers compatible with DC 24V power supply
- May need calibration adjustments depending on machine specifics
The CNC Automatic Tool Sensor Gauge features a robust Normally Closed CNC Z Axis Tool Setter design, which ensures consistent and reliable tool detection during operation. This sensor allows for rapid and precise measurement of tool length, significantly reducing setup time and improving overall machining efficiency. Its compatibility with DC 24V CNC routers ensures it fits seamlessly into a variety of CNC systems.
Designed and manufactured by Mefape, this tool setter boasts durable construction and dependable performance. By automating the tool setting process, it helps prevent tool damage and extends tool life, ultimately saving costs and reducing downtime. Users benefit from enhanced accuracy and repeatability, making it an essential accessory for any serious CNC operator.
Rattmmotor Ip65 Blue Cnc Router Automatic Tool Sensor Gauge
The RATTMMOTOR IP65 Blue CNC Router Automatic Tool Sensor is ideal for precision-oriented professionals and hobbyists who require highly accurate tool setting and measurement in their CNC engraving and machining projects. If you work with CNC machines and need a reliable, high-precision touch setter to enhance your workflow and reduce errors, this product is designed for you.
Pros:
- High accuracy with 0.005mm precision ensures precise tool measurements.
- IP65 waterproof rating provides durability and protection in harsh workshop environments.
- Automatic tool sensing streamlines the tool setting process and reduces setup time.
- Compatible with Mach3 CNC systems for easy integration.
- Normally closed design enhances reliability in signal detection.
Cons:
- May require technical knowledge for proper installation and calibration.
- Limited to use with specific CNC software like Mach3.
- Price might be higher compared to simpler tool setter alternatives.
The RATTMMOTOR IP65 Blue CNC Router Automatic Tool Sensor features a robust construction with an IP65 rating, which means it is protected against dust and water jets. This makes it suitable for demanding workshop conditions, ensuring longevity and consistent performance. The sensor’s 5mm stroke and 0.005mm accuracy enable precise detection of tool position, which is critical for achieving flawless engravings and cuts.
Integration with the widely used Mach3 CNC software allows users to seamlessly incorporate this tool setter into their existing CNC setups, enhancing workflow efficiency. The normally closed switch design guarantees reliable and stable signal transmission, minimizing errors during tool measurement. Overall, this product provides a significant benefit in improving machining accuracy and reducing downtime caused by manual tool setting.

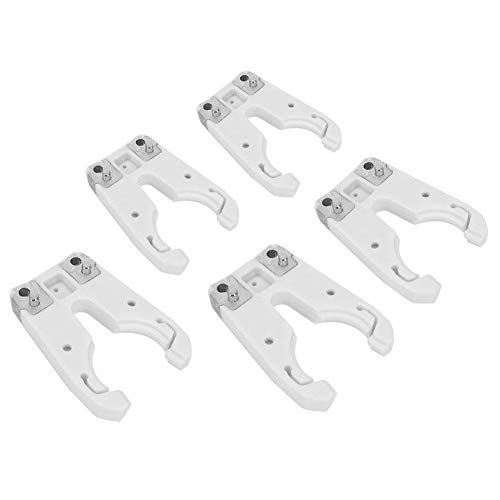

Maxmartt 5pcs Iso30 Tool Holder Clamp Cradle Claw Set
The Maxmartt 5pcs ISO30 Tool Holder Clamp Cradle Claw Set is ideal for professionals and hobbyists working with CNC machines and woodworking tools. If you require reliable and precise tool holding solutions for your automatic tool changer, this set is designed to improve efficiency and accuracy in your machining or engraving projects. It is perfect for those who value durable and high-quality components to maintain smooth operations in demanding environments.
Pros:
- Includes 5 durable ISO30 tool holder clamps for multiple tool setups
- Compatible with various CNC machines and automatic tool changers
- Enhances tool stability and precision during operation
- Constructed from high-quality materials ensuring long-lasting performance
- Easy to install and replace, reducing machine downtime
Cons:
- May require familiarity with ISO30 tool holders for optimal use
- Limited to machines supporting ISO30 interfaces
The Maxmartt Tool Holder Clamp Cradle Claw Set features a robust design that securely holds the tool in place, minimizing vibrations and improving cutting accuracy. This is particularly beneficial for users who require consistent performance in detailed woodworking or engraving tasks. The set’s compatibility with automatic tool changers streamlines the tool swapping process, saving time and boosting productivity in industrial or workshop settings.
Crafted by the reputable Maxmartt brand, these clamps provide reliable clamping force and excellent wear resistance, ensuring longevity even under heavy use. Their precise fit with ISO30 holders guarantees stable tool positioning, which results in better surface finishes and extended tool life. Overall, this set is a valuable addition for anyone looking to enhance their CNC machining and woodworking capabilities.
Spindle Gdl80-20-30z/1.5kw Water Cooled Spindle Motor
The Spindle GDL80-20-30Z/1.5KW Water Cooled Spindle Motor 220V 1000Hz Automatic Tool Changer is ideal for professional CNC milling and routing users who require high precision and efficiency. This product is perfect for metal cutting tool operators, machinists, and hobbyists looking to upgrade their CNC machines with a reliable and powerful spindle motor. If you need consistent performance for demanding milling tasks, this spindle motor is designed to meet those needs.
Pros:
- High power output of 1.5KW ensures efficient cutting and milling.
- Water cooling system enhances durability and prevents overheating during extended use.
- Supports up to 24000rpm for fast and precise machining.
- Equipped with an automatic tool changer for seamless operation and increased productivity.
- Compatible with 220V power supply and 1000Hz frequency for stable performance.
- Robust build with a weight of approximately 17.6 pounds, ensuring stability during operation.
Cons:
- Relatively heavy, which might require additional support or mounting considerations.
- Water cooling system requires maintenance and proper setup.
- Designed primarily for 220V systems, limiting use in lower voltage environments without adapters.
The KIRANDY branded spindle motor, manufactured by JUN-STORE, offers a robust solution for CNC machining tasks. Its high rotational speed of 24000rpm combined with the powerful 1.5KW motor ensures that users experience smooth and efficient metal cutting and milling. The inclusion of an automatic tool changer significantly reduces downtime, allowing operators to switch tools quickly and maintain workflow continuity.
The water cooling feature is a standout aspect of this spindle motor, preventing overheating which can degrade performance and shorten the lifespan of the tool. This makes it especially suitable for extended or heavy-duty milling operations. While the weight of the spindle is notable, it contributes to the overall stability and precision of the machine during operation, which is critical for high-quality results in CNC routing and metal cutting applications. Overall, this spindle motor is a great investment for anyone looking to enhance their CNC machine’s capabilities with reliable, high-speed, and efficient performance.
Almencla 4 Holder Clamp Claw Bt30
The Almencla 4 Holder Clamp Claw BT30 is ideal for professionals and hobbyists who operate engraving machines, CNC routers, or tools requiring a reliable and precise tool changer. If you seek enhanced efficiency and stability in your machining processes, this clamp claw is designed to provide superior grip and secure tool holding, making it perfect for those who demand accuracy and consistency in their work.
Pros:
- Constructed by the reputable Almencla brand, ensuring quality and durability
- Multicolored design for easy identification and organization of tools
- Compatible with BT30 tool holders, widely used in CNC and engraving machines
- Provides secure and firm clamping, reducing tool slippage during operation
- Enhances machine efficiency by enabling quick and reliable tool changes
Cons:
- Limited to BT30 size, not compatible with other tool holder types
- May require precise installation to achieve optimal clamping force
- Multicolored design might not match all machine aesthetics
The Almencla 4 Holder Clamp Claw BT30 is engineered to provide a robust and dependable gripping solution for your engraving machine tool changers and CNC routers. Its compatibility with the popular BT30 tool holder standard ensures it fits a wide range of machines, making it a versatile accessory for many workshops. The multicolored design not only adds a visual appeal but also helps users quickly identify and sort tools, reducing downtime during tool changes.
Built with precision and quality from Almencla, this clamp claw enhances the overall machining process by securing tools firmly in place, which minimizes vibration and potential errors in engraving or routing projects. The ease of installation and reliable performance translates to smoother operations and increased productivity for users who prioritize tool stability and quick changeovers in their workflow.
Nk105 G3 Handle Dsp Woodworking Controller
The NK105 G3 Handle DSP Woodworking Controller is ideal for professional woodworkers and CNC enthusiasts who require a reliable and precise 3-axis motion control system. This system is perfect for those operating a CN-C router with an automatic tool changer, seeking enhanced control and efficiency in their woodworking projects.
Pros:
- High precision 3-axis motion control for detailed woodworking tasks
- Compatible with CN-C routers featuring automatic tool changers
- Compact and lightweight design weighing only 2.2 pounds
- Durable build from the trusted HEXEH brand
- Easy integration and setup with existing woodworking equipment
Cons:
- Limited to one color option
- May require technical knowledge for optimal configuration
The NK105 G3 Handle DSP Controller offers a robust solution for managing complex woodworking operations. Its 3-axis motion control ensures smooth and accurate movements, which is crucial for projects requiring high precision. This allows users to achieve professional-grade finishes and repeatable results with ease.
Additionally, the controller’s compatibility with CN-C routers equipped with an automatic tool changer enhances workflow efficiency by reducing manual tool swaps. Its lightweight and compact design make it convenient to handle and install without compromising on performance. Overall, this controller is a valuable asset for advancing woodworking capabilities.
Fpbigcha Atc Water Cooling Spindle 7.5kw
The FPBIGCHA ATC Water Cooling Spindle 7.5KW BT40 is ideal for professional CNC router users and metalworkers who demand high precision and durability. If you require a powerful spindle capable of handling intensive machining tasks with efficient cooling and automatic tool changing, this spindle is designed to meet those needs. It is perfect for workshops focusing on metal fabrication and those looking to upgrade their CNC systems for better performance and reliability.
Pros:
- High power output with 7.5KW for efficient cutting and milling.
- Robust BT40 tool holder compatible with a wide range of tools.
- Efficient water cooling system to maintain optimal spindle temperature and prolong lifespan.
- Fast 12000rpm speed enabling smooth and precise machining operations.
- Automatic Tool Changer (ATC) feature enhances productivity by reducing manual tool changes.
- Durable construction weighing 77.16 pounds, ensuring stability during heavy-duty tasks.
Cons:
- Relatively heavy, which may require sturdy mounting and support.
- Water cooling system needs regular maintenance to prevent clogging or leaks.
- Higher power consumption compared to lower KW spindles.
The FPBIGCHA ATC Water Cooling Spindle offers an excellent balance between power and precision, making it suitable for demanding metal CNC routing projects. Its 12000rpm speed combined with the 7.5KW motor ensures efficient material removal and smooth finishes. The integrated water cooling system not only prevents overheating but also extends the spindle’s operational life, enabling longer work hours without performance loss.
Additionally, the Automatic Tool Changer (ATC) significantly improves workflow by minimizing downtime during tool swaps, which is crucial for complex or multi-step machining processes. The use of a BT40 tool holder adds versatility, allowing users to work with a broad range of tooling options. Overall, this spindle is a reliable investment for CNC professionals aiming to boost productivity and achieve high-quality results in metalworking applications.
Frequently Asked Questions
What Is An Automatic Tool Changer (atc) For Cnc Routers?
An automatic tool changer (ATC) swaps cutting tools on a CNC router automatically. It improves efficiency by reducing manual tool changes and downtime. ATCs like the RATTMMOTOR and FPBIGCHA models support fast, precise tool swaps, enhancing productivity in milling, engraving, and woodworking tasks.
How Does A Cnc Tool Sensor Gauge Improve Machining Accuracy?
A CNC tool sensor gauge detects tool position and length automatically. It ensures precise tool setting and reduces errors during machining. Using sensors like the RATTMMOTOR Z-axis probe helps maintain consistent cutting depth, improving quality and minimizing material waste in CNC router operations.
Which Spindle Motors Are Suitable For Automatic Tool Changer Cnc Routers?
Spindle motors like 1. 8KW ISO20, 2. 2KW VFD inverter, and 3KW BT30 water-cooled types are ideal for ATC CNC routers. They offer high RPM (up to 24000), smooth performance, and efficient cooling. These spindles support diverse materials and machining speeds for versatile routing and engraving.
What Is The Role Of Tool Holders In Cnc Automatic Tool Changers?
Tool holders securely clamp cutting tools in the ATC carousel or magazine. Sets like ISO30 and BT30 clamps ensure stable, repeatable tool positioning. Proper holders prevent tool slippage, enhance machining accuracy, and enable smooth automatic tool swaps in CNC routers and milling machines.
Can I Integrate A Dsp Controller With My Cnc Router Atc System?
Yes, DSP controllers like the NK105 G3 handle 3-axis motion control and ATC functions. They provide user-friendly interfaces and precise tool change management. Integrating such controllers improves automation, simplifies operation, and increases the CNC router’s overall efficiency and reliability.
How Does Water Cooling Benefit Cnc Router Spindle Motors?
Water cooling keeps spindle motors at optimal temperatures during high-speed operation. It prevents overheating, extends spindle life, and maintains consistent performance. Water-cooled spindles like the 1. 5KW and 7. 5KW BT40 models are ideal for continuous, heavy-duty CNC routing and metal cutting tasks.
Conclusion
Choosing the right CNC router automatic tool changer makes a big difference in your work. These devices help change tools quickly and accurately, saving time and effort. Whether you use a spindle motor, tool sensor gauge, or tool setter, each part plays an important role.
Models like the 1. 8KW ISO20 or 3KW BT30 offer reliable performance for many tasks. Tool holders and clamps ensure tools stay in place during operation. The CNC Z axis probes add precision for better cuts and engravings. Water-cooled spindle motors help keep machines cool and run smoothly.
Investing in quality components improves your machine’s efficiency and product quality. With the right setup, even complex projects become easier and faster. Consider your machine size, tool types, and work needs when selecting parts. A well-chosen automatic tool changer system can boost your workshop’s productivity without adding complexity.
Simple, steady, and accurate—this is the key to better CNC routing.
