Automotive CAN Bus analyzer tools help diagnose vehicle communication problems quickly and accurately. These devices connect to the car’s CAN Bus system to read data and detect faults.
CAN Bus analyzers allow mechanics and technicians to monitor signals and troubleshoot issues in real time. They support various protocols and provide clear data on engine, transmission, and other electronic systems. Using tools like OBD2 breakout boxes with LED indicators or LCD displays makes testing easier and more efficient.
Many analyzers come with cables and adapters for different vehicle types, including heavy-duty trucks. Some models offer non-contact testing to read signals without cutting wires. These tools save time and reduce guesswork during vehicle maintenance and repairs. Understanding how to use a CAN Bus analyzer helps ensure accurate diagnostics and smoother car performance.
Duoyi Obd2 Breakout Box
The DUOYI OBD2 Breakout Box Can Bus Breakout Box is ideal for automotive technicians, DIY car enthusiasts, and anyone involved in vehicle diagnostics who needs a reliable and efficient tool for analyzing the OBDII protocol. This device is perfect for those who require precise identification of automotive electrical issues, especially when working with CAN Bus systems and 16-pin OBD2 connectors.
Pros:
- Built-in LED light indicators for easy and quick protocol detection.
- Compatible with 16-Pin OBD2 connectors, supporting a wide range of vehicles.
- Includes a 35-inch cable for convenient access during diagnostics.
- Compact and portable design with precise dimensions for easy handling.
- Enables effective troubleshooting of CAN Bus communication issues.
Cons:
- May require prior knowledge of automotive diagnostics to fully utilize features.
- Limited to vehicles supporting OBDII protocols, not compatible with older models.
The DUOYI OBD2 Breakout Box features a sturdy design with dimensions tailored for ease of use in automotive environments. Its integrated LED lights provide instant visual feedback on the protocol status, allowing users to quickly identify communication issues without needing additional devices. The 16-pin interface ensures broad compatibility with most modern vehicles, making it a versatile tool for various diagnostic tasks.
Additionally, the inclusion of a 35-inch cable offers flexibility and convenience when working under the dashboard or in tight spaces. This automotive diagnostic tool not only simplifies the process of pinpointing electrical faults but also enhances efficiency by providing real-time data and clear indications. Overall, the DUOYI Can Bus Breakout Box is an essential addition to any professional or enthusiast’s toolkit for accurate and dependable vehicle diagnostics.
Obd2 Breakout Box
The OBD2 Breakout Box is ideal for automotive technicians, vehicle enthusiasts, and heavy-duty truck mechanics who require a reliable tool for ECU maintenance, diagnosis, programming, and coding. If you work with various vehicles and need to easily detect OBDII protocols or test CAN bus communication, this device is designed to simplify your workflow and improve accuracy.
Pros:
- Supports 16-pin CAN bus testing for comprehensive vehicle diagnostics
- Compatible with both 24V and 12V heavy-duty trucks, enhancing versatility
- Compact design with dimensions 1.2 inches (H) x 2.25 inches (W) x 4.81 inches (L) for easy handling and storage
- Durable black housing from trusted brand Kawish
- Enables quick and accurate OBDII protocol detection to streamline troubleshooting
Cons:
- May require some technical knowledge for effective use
- Limited to vehicles supporting OBDII protocols and CAN bus systems
The OBD2 Breakout Box by Kawish is engineered to provide technicians with a straightforward way to access and test vehicle ECU signals. Its ability to detect the correct OBDII protocol automatically minimizes guesswork and reduces diagnostic time. This feature is particularly beneficial in mixed fleets or workshops handling different vehicle makes and models. The breakout box also facilitates safe and efficient testing of CAN bus networks, which is crucial for diagnosing communication errors in modern vehicles.
Thanks to its compatibility with both 24V and 12V heavy-duty trucks, this tool is versatile enough to be a staple in any professional’s toolbox. The compact size and sturdy build ensure it withstands the rigors of daily use in busy automotive environments. Overall, this breakout box enhances diagnostic accuracy and efficiency, ultimately saving time and reducing repair costs for users.
Kawish Obd2 Breakout Box
The KAWISH OBD2 Breakout Box Auto OBDII Protocol Detector is ideal for automotive technicians, mechanics, and car enthusiasts who require a reliable tool to diagnose and analyze vehicle communication protocols quickly. If you often work with various OBDII systems and need to detect CAN Bus communication issues or ECU faults, this device is tailored for your professional and diagnostic needs.
Pros:
- Compact and lightweight design for easy portability and handling.
- Supports 16-pin CAN Bus testing with clear LCD Display for real-time protocol detection.
- Compatible with multiple OBDII protocols, enhancing versatility in diagnostics.
- Provides accurate communication detection, improving troubleshooting efficiency.
- Durable build by Kawish ensures long-lasting use in demanding environments.
Cons:
- May require some technical knowledge to interpret diagnostic data effectively.
- Limited to vehicles equipped with OBDII 16-pin connectors, restricting use on older models.
The KAWISH OBD2 Breakout Box features a robust design with dimensions of approximately 7.87 inches in length and weighing under 1 pound, making it highly portable for on-the-go diagnostics. Its built-in LCD display provides clear and instant feedback on the OBDII protocol communication status, which is essential for identifying protocol compatibility and pinpointing communication issues between the ECU and diagnostic tools.
This device excels in versatility by supporting a wide range of OBDII protocols, making it suitable for various vehicle makes and models. The ability to detect CAN Bus signals and other communication protocols helps users quickly diagnose faults without the need for multiple testing tools. Overall, the KAWISH OBD2 Breakout Box enhances diagnostic accuracy, reduces troubleshooting time, and offers a reliable solution for automotive professionals aiming to maintain vehicle health efficiently.
Woyo Pl007 E Non-contact Can Bus Tester
The WOYO PL007 E Non-Contact CAN Bus Tester, Engineer Edition, is ideal for automotive technicians, engineers, and electronics hobbyists who need a reliable and efficient tool to diagnose and analyze CAN bus systems without disrupting the wiring. If you work with vehicle networks or embedded systems and require precise data reading and analysis, this device is designed to meet your professional needs.
Pros:
- Reads baud rate and ID data without breaking the wire, ensuring non-invasive testing.
- Automatically recognizes CAN-H and CAN-L signals for quick and accurate diagnostics.
- Ability to upload ID data directly to a PC or laptop via the CAN Bus Analyzer software.
- Compact design in striking black and red colors, reflecting both style and durability.
- Manufactured by WOYO, a trusted brand in automotive diagnostic tools.
Cons:
- May require some technical knowledge to fully utilize all advanced features.
- Limited to CAN bus systems, so not suitable for other communication protocols.
- Software compatibility depends on PC/laptop specifications and operating system.
The WOYO PL007 E stands out with its ability to perform non-contact testing, meaning it reads the CAN bus signals without any need to cut or splice wires. This feature preserves the integrity of vehicle wiring, which is crucial for maintaining system reliability. Additionally, its automatic recognition of CAN-H and CAN-L lines streamlines the diagnostic process, saving time and reducing the chance of human error during connection. The ergonomic design also ensures ease of use in tight engine compartments or workshop environments.
Another significant feature is the integration with PC or laptop through the included CAN Bus Analyzer software, allowing users to upload and analyze ID data effortlessly. This connectivity enhances data management and reporting capabilities, making it easier to document findings or troubleshoot complex network issues. Overall, the WOYO PL007 E is a powerful tool that combines precision, convenience, and advanced technology, making it a valuable asset for anyone working with CAN bus systems.
Obd-ii Breakout Box

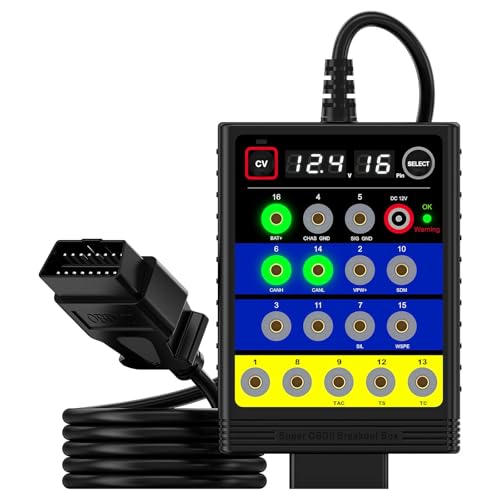

The OBD-II Breakout Box by ELMCONFIG is ideal for professional automotive technicians, ECU developers, and DIY car enthusiasts who need an efficient and reliable tool for diagnosing vehicle electronic systems. This device is perfect for those involved in detailed bench testing of ECU units, enabling precise monitoring and troubleshooting of automotive circuits.
Pros:
- Supports CAN protocol detection for accurate communication analysis.
- Includes short circuit protection to safeguard both the tester and vehicle electronics.
- Comes with 12 extension cables for versatile connectivity during ECU bench testing.
- Provides constant voltage supply ensuring stable testing conditions.
- Manufactured by ELMCONFIG, known for quality and durability in automotive tools.
Cons:
- May require basic knowledge of automotive electronics to use effectively.
- Primarily designed for bench testing, less convenient for on-road diagnostics.
The OBD-II Breakout Box serves as a comprehensive interface for automotive circuit analysis, offering seamless detection of CAN protocols critical for modern vehicle diagnostics. Its robust design with built-in short circuit protection ensures that users can conduct tests without risking damage to sensitive ECU components, enhancing both safety and reliability. Additionally, the inclusion of multiple extension cables allows for flexible setup configurations, making it easier to connect to various vehicle models and ECU types.
Beyond its functional advantages, this tool provides a constant voltage supply which is essential for maintaining stable operating conditions during ECU bench testing. This stability helps in producing more accurate diagnostic results and reduces the chances of errors caused by fluctuating power. Overall, the ELMCONFIG OBD-II Breakout Box is a must-have for anyone serious about automotive diagnostics and ECU development, combining safety, versatility, and precision in one compact device.
Gridpro Gp110 Obd2 Car Scanner Code Reader
The GRIDPRO GP110 OBD2 car Scanner Code Reader is ideal for car owners and automotive enthusiasts who want a reliable and easy-to-use diagnostic tool. Whether you’re a DIY mechanic or someone who wants to save money on vehicle repairs, this device helps you quickly identify and clear engine codes, making it a valuable addition to any garage. It’s perfect for those who need a versatile tool compatible with all cars that support OBD II protocols.
Pros:
- Large, clear display for easy reading of diagnostic information
- Compatible with all cars using OBD II and CAN Bus systems
- Ability to read and clear engine codes, helping to reset the check engine light
- Compact and portable design with dimensions of 6.0 x 1.0 x 3.0 inches
- Includes additional functions such as car battery testing
- Durable build from a reputable brand, GRIDPRO
Cons:
- Limited advanced diagnostic features compared to professional-grade tools
- May require basic knowledge of OBD II codes for effective use
The GRIDPRO GP110 OBD2 Scanner offers a user-friendly experience with its large display, allowing users to easily navigate through diagnostic data without straining their eyes. Its compatibility with all OBD II vehicles ensures that this tool is versatile enough for a wide range of car models, providing convenience and peace of mind. The inclusion of a car battery test function adds extra value by helping users monitor battery health, preventing unexpected breakdowns.
Designed with portability in mind, this scanner’s compact dimensions make it easy to carry and store, so users can have it on hand whenever an engine light appears. The ability to quickly clear engine codes means that minor issues can be addressed promptly, potentially saving on costly repairs. Overall, the GRIDPRO GP110 is a practical, affordable diagnostic solution tailored for everyday car owners who want straightforward and efficient vehicle maintenance.
Ljhnba Usb To Can Module Can Bus Analyser

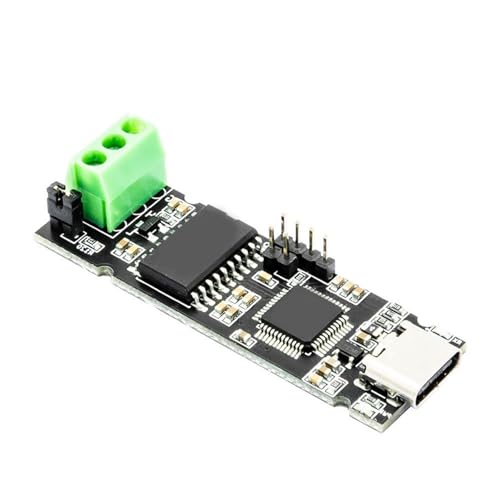

The ljhnba USB to CAN Module CAN Bus Analyser with the STM32F072C8T6 Processor is ideal for professionals and hobbyists involved in automotive diagnostics and embedded system development. If you require a reliable and isolated interface to analyze and communicate with CAN bus networks, this module is designed to meet those needs efficiently. Engineers, developers, and automotive technicians looking for a compact and robust CAN bus solution should consider this product.
Pros:
- Features an isolated design ensuring safe and reliable communication with CAN networks.
- Powered by the high-performance STM32F072C8T6 Processor for smooth data processing.
- Compact and portable, making it ideal for on-the-go diagnostics and development.
- Compatible with various CAN bus protocols enhancing versatility for different applications.
- Easy USB connectivity allows for quick setup and seamless integration with PCs and development tools.
Cons:
- Limited to the color variant “A”, which might not suit all preferences.
- May require some technical knowledge to fully utilize all features and capabilities.
The ljhnba USB to CAN Module is built with the STM32F072C8T6 Processor, known for its efficient processing power and reliability. This ensures that data from CAN bus systems is captured and analyzed with high accuracy and minimal latency, which is crucial for automotive diagnostics and embedded system testing. Its isolated design protects both the module and connected devices from electrical interference and potential damage, enhancing safety during use.
Designed with developers and automotive professionals in mind, this module offers a user-friendly USB interface that simplifies connection to computers for data logging and analysis. Its compatibility with a wide range of CAN protocols makes it a flexible tool for various environments, from vehicle diagnostics to industrial automation. The compact form factor and robust build quality also make it a practical choice for fieldwork and laboratory testing alike.
Autel Obd2 Scanner Ms309
The Autel OBD2 Scanner MS309 is ideal for car owners and automotive enthusiasts who want a reliable and easy-to-use diagnostic tool to identify engine issues quickly. This device is perfect for those who own vehicles manufactured after 1996 and seek an affordable solution to monitor their vehicle’s health without frequent visits to a mechanic.
Pros:
- Compatible with all OBDII protocol vehicles after 1996
- Compact and lightweight design for easy handling and storage
- Provides accurate check engine code readings and emission monitor status
- Simple interface ideal for both beginners and experienced users
- Red color makes it easy to locate among other tools
Cons:
- Limited to basic diagnostic functions, lacking advanced features
- No wireless connectivity, requiring physical connection to the vehicle
- Small screen size may make reading data slightly challenging for some users
The Autel OBD2 Scanner MS309 offers a straightforward and efficient way to access your vehicle’s diagnostic information. Its compatibility with all OBDII protocol vehicles manufactured after 1996 ensures a wide range of usability, making it a versatile tool for many car models. The device quickly reads and displays trouble codes, allowing users to identify engine problems and emission status without professional assistance, saving both time and money.
Designed with portability in mind, the scanner’s compact dimensions and lightweight build make it convenient to carry and use anywhere. The clear interface and easy-to-navigate menus provide a user-friendly experience, enabling even novice users to understand and interpret diagnostic results. Overall, the Autel OBD2 Scanner MS309 empowers car owners with essential vehicle insights to maintain optimal performance and prevent costly repairs.
Sumsoctober Pd60 Multi Functional Diagnostic Tool
The Sumsoctober PD60 Multi Functional Diagnostic Tool is ideal for professional mechanics, automotive technicians, and car enthusiasts who require a reliable device for ECU diagnostics, fuel injector testing, and ignition coil simulation. If you are looking for a comprehensive solution to streamline your automotive maintenance and testing processes, this tool offers robust features designed to enhance accuracy and efficiency.
Pros:
- Multi-functional capability including ECU diagnostics, fuel injector, and ignition coil simulation.
- Equipped with CAN data analysis display for advanced vehicle data interpretation.
- Compact and lightweight design for easy handling and portability.
- Manufactured by trusted brand Sumsoctober, ensuring quality and durability.
- Clear visual display that simplifies complex diagnostic data.
Cons:
- May require technical knowledge to fully utilize all advanced functions.
- Limited color options as per product description.
- Size might be slightly bulky for some users preferring ultra-compact tools.
Featuring a precise and user-friendly CAN data analysis display, the Sumsoctober PD60 allows users to access and interpret vehicle diagnostic information efficiently. This enhances troubleshooting accuracy, enabling quicker identification of issues with the engine control unit (ECU), fuel injectors, and ignition coils. The tool’s ability to simulate ignition coil and fuel injector operations also provides mechanics with a safe and effective way to test components without disassembly.
The device’s compact dimensions and lightweight design contribute to its ease of use in various workshop environments. Its multifunctional nature eliminates the need for multiple diagnostic tools, saving time and reducing equipment costs. With the reliability backed by the Sumsoctober brand, users can trust this diagnostic tool to deliver consistent performance essential for maintaining modern vehicles.
Beatifufu Battery Tester Automotive Tool
The Beatifufu 1pc Battery Tester Automotive Tool is ideal for car and motorcycle owners who want a quick and reliable way to check their battery health. If you frequently drive or maintain vehicles and need a practical, easy-to-use device to ensure your battery systems are functioning correctly, this battery analyzer is a perfect fit.
Pros:
- Compact and lightweight design, making it easy to carry and store.
- LED indication provides clear and immediate battery status feedback.
- Suitable for both cars and motorcycles, offering versatility.
- Simple to use with no complicated setup or tools required.
- Durable light grey casing that resists wear and tear.
Cons:
- Limited to basic battery health analysis; not suitable for advanced diagnostics.
- Small size might be challenging to handle for users with large hands.
- No digital display, relying solely on LED indicators for results.

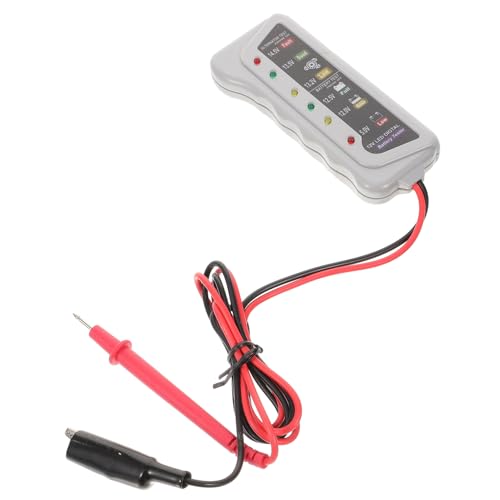

The Beatifufu Battery Tester features a sleek and practical design with dimensions of approximately 4.72 inches in length, 1.77 inches in width, and a height of 0.79 inches, weighing less than half a pound. This makes it highly portable and convenient for on-the-go battery checks. Its LED indication system simplifies the process by visually displaying the battery status, eliminating guesswork and the need for technical expertise.
Designed by Beatifufu, this tool is built for reliability and ease of use. It works efficiently with various automotive batteries, ensuring that users can quickly diagnose whether a battery needs charging, replacement, or is in good condition. The light grey finish not only adds to its aesthetic appeal but also enhances its durability, making it a practical choice for everyday vehicle maintenance.
Frequently Asked Questions
What Is A Can Bus Analyzer Tool?
A CAN Bus Analyzer Tool is a diagnostic device used in automotive systems. It helps to analyze and interpret data transmitted over the CAN bus. This tool is essential for troubleshooting, maintenance, and programming of vehicle electronic systems.
How Does An Obd2 Breakout Box Work?
An OBD2 Breakout Box connects to a vehicle’s OBD2 port. It allows technicians to test and monitor electronic signals. With LED indicators and protocol detectors, it simplifies diagnosis. It helps in identifying issues with the vehicle’s electronic control units.
Why Use A Can Bus Protocol Detector?
A CAN Bus Protocol Detector identifies communication issues in a vehicle’s CAN bus system. It ensures accurate data transmission between electronic components. This is crucial for maintaining vehicle performance and safety. It helps in diagnosing and fixing potential problems efficiently.
What Features Does A Non-contact Can Bus Tester Offer?
A Non-Contact CAN Bus Tester reads data without interrupting the system. It recognizes CAN high and low signals automatically. This tool is ideal for quick and accurate diagnostics. It uploads data to a PC for in-depth analysis, enhancing its utility.
Can An Obd2 Scanner Read All Vehicle Codes?
An OBD2 Scanner can read codes from most vehicles manufactured after 1996. It checks engine light issues and emission monitors. However, compatibility may vary. Always verify your vehicle’s compatibility with the scanner model before purchase for best results.
What Is The Use Of A Battery Tester Automotive Tool?
A Battery Tester Automotive Tool assesses a vehicle’s battery health. It provides quick insights into battery voltage and performance. With LED indicators, it offers a visual representation of battery status. It’s essential for ensuring reliable vehicle operation and preventing battery failures.
Conclusion
Choosing the right automotive CAN Bus analyzer tool can make vehicle diagnostics easier and faster. These tools help detect problems by reading data from the car’s network quickly. Whether you need to test ECU connections or check communication protocols, a good breakout box or CAN Bus tester simplifies the process.
Many models come with helpful features like LED indicators, LCD displays, and long cables for convenience. Using these tools reduces guesswork and saves time during repairs or maintenance. They are useful for both beginners and experienced mechanics. Investing in a reliable CAN Bus analyzer supports better vehicle care and accurate fault detection.
This leads to safer driving and fewer unexpected breakdowns. Understanding how to use these tools also improves your ability to diagnose complex automotive issues. Overall, a CAN Bus analyzer is a valuable addition to any automotive toolkit.
